Batch Run via CLI
In this section, we explain the batch simulation mode through command-line interface (CLI). While individual python scripts can be used to run simple simulations or with a highly customized setup, we offer CLI to enable a massively parallel simulation. This includes the device pool generation with dedicated configurations, multi-processings and output statistics generation.

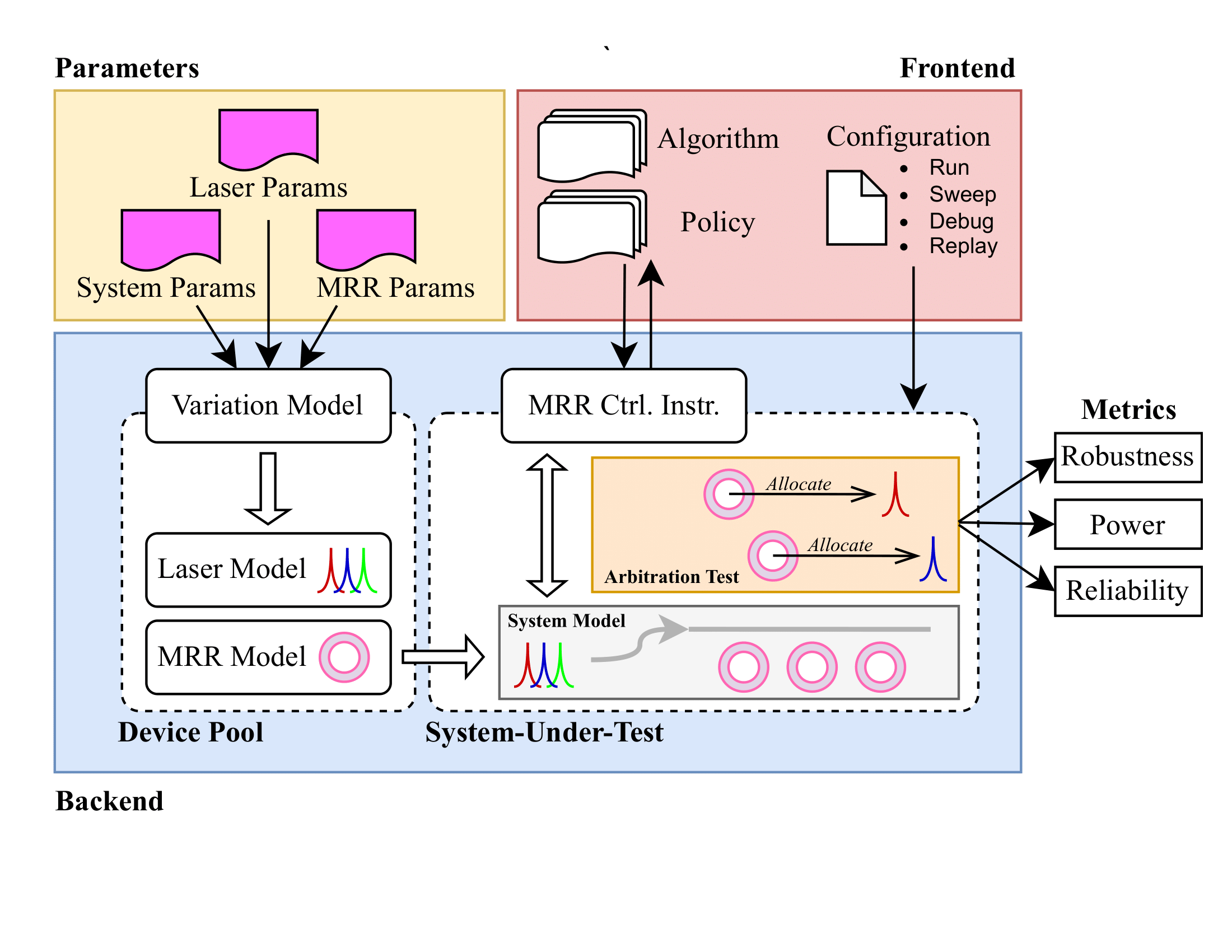

This figure shows the overall flow of the batch simulation mode, which is the main focus of this section.
Run Mode
Now, let’s try to run the first batch-mode simulation.
First, run the following command in your session:
$ wdmsim run --help
which will print this help message:
Usage: wdmsim run [OPTIONS]
Run a single experiment
Options:
--profile Run in profile mode
-nl, --num_laser_swaps INTEGER Number of laser swap iterations [default:
10]
-nr, --num_ring_swaps INTEGER Number of ring swap iterations [default: 1]
-a, --arbiter TEXT Arbiter of choice [required]
-lf, --laser_config_file FILE Laser config file [default:
configs/example_laser_config.yml]
-ls, --laser_config_section TEXT
Laser config section [default: msa-8]
-rf, --ring_config_file FILE Ring config file [default:
configs/example_ring_config.yml]
-rs, --ring_config_section TEXT
Ring config section [default: msa-8]
-ilof, --init_lane_order_config_file FILE
Ring config file [default:
configs/example_lane_order.yml]
-ilos, --init_lane_order_config_section TEXT
Ring config section [default: linear_8]
-tlof, --tgt_lane_order_config_file FILE
Ring config file [default:
configs/example_lane_order.yml]
-tlos, --tgt_lane_order_config_section TEXT
Ring config section [default: linear_8]
--results_dir DIRECTORY Results directory [default: results]
-v, --verbose Enable verbose output
--help Show this message and exit.
Arbiter Options:
[index]: [arbiter]
0: example_one_by_one
Now, change directory into the provided example (examples/ in the cloned repo).
You can check the configuration file: example_run_config.yaml.
$ cat example_run_config.yaml
# examples/example_run_config.yaml
linear:
run: SINGLE
type: LANEORDER
attribute:
alias: 'LINEAR'
lane:
0: 0
1: 1
2: 2
3: 3
ring-4:
run: SINGLE
type: RING
attribute:
fsr_mean: 8.96e-9
fsr_variance: 0.01
tuning_range_mean: 4.48e-9
tuning_range_variance: 0.10
inherit_laser_variance: false
resonance_variance: 2.0e-9
laser-4:
run: SINGLE
type: LASER
attribute:
num_channel: 4
center_wavelength: 1300.05e-9
grid_spacing: 2.24e-9
grid_max_offset: 5.0e-9
grid_variance: 0.05
As explained in the previous section, we model 4-channel DWDM system with linear lane order, 2nm local ring resonance variation and approximately half-FSR tuning range.
Now, you can run the provided shell script to plug the configurations and run the simulation:
$ cat run_example.sh
#!/bin/bash
wdmsim run \
--arbiter example_one_by_one \
--num_laser_swaps 2 \
--num_ring_swaps 2 \
--laser_config_file example_run_config.yaml \
--ring_config_file example_run_config.yaml \
--init_lane_order_config_file example_run_config.yaml \
--tgt_lane_order_config_file example_run_config.yaml \
--laser_config_section laser-4 \
--ring_config_section ring-4 \
--init_lane_order_config_section linear \
--tgt_lane_order_config_section linear \
--verbose
$ ./run_example.sh
The output should start with a general meta-data print in your terminal:
[root] ================================================================================
[root] ================================ WDM Simulator =================================
[root] ================================================================================
[root] [Config] :: file :: section
[root] laser :: example_run_config.yaml :: laser-4
[root] ring :: example_run_config.yaml :: ring-4
[root] init_lane :: example_run_config.yaml :: linear
[root] tgt_lane :: example_run_config.yaml :: linear
[root] ================================================================================
[root] [Laser Design Parameters]
[root] num_channel :: 4
[root] center_wavelength :: 1.30005e-06
[root] grid_spacing :: 2.24e-09
[root] grid_variance :: 0.05
[root] grid_max_offset :: 5e-09
[root] ================================================================================
[root] [Ring Design Parameters]
[root] fsr_mean :: 8.96e-09
[root] fsr_variance :: 0.01
[root] tuning_range_mean :: 4.48e-09
[root] tuning_range_variance :: 0.1
[root] inherit_laser_variance :: False
[root] resonance_variance :: 2e-09
[root] ================================================================================
[root] [Initial Lane Order Parameters]
[root] alias :: LINEAR
[root] ================================================================================
[root] [Target Lane Order Parameters]
[root] alias :: LINEAR
[root] ================================================================================
[root] [Arbiter of Choice]
[root] class_name :: example_one_by_one
[root] ================================================================================
[root] =============================== Experiment Start ===============================
[root] ================================================================================
And unfold below to see the full example output (note that the output always changes due to randomization, we will add a seeded-randomization feature in the future):
[root] ================================================================================
[root] ================================ WDM Simulator =================================
[root] ================================================================================
[root] [Config] :: file :: section
[root] laser :: example_run_config.yaml :: laser-4
[root] ring :: example_run_config.yaml :: ring-4
[root] init_lane :: example_run_config.yaml :: linear
[root] tgt_lane :: example_run_config.yaml :: linear
[root] ================================================================================
[root] [Laser Design Parameters]
[root] num_channel :: 4
[root] center_wavelength :: 1.30005e-06
[root] grid_spacing :: 2.24e-09
[root] grid_variance :: 0.05
[root] grid_max_offset :: 5e-09
[root] ================================================================================
[root] [Ring Design Parameters]
[root] fsr_mean :: 8.96e-09
[root] fsr_variance :: 0.01
[root] tuning_range_mean :: 4.48e-09
[root] tuning_range_variance :: 0.1
[root] inherit_laser_variance :: False
[root] resonance_variance :: 2e-09
[root] ================================================================================
[root] [Initial Lane Order Parameters]
[root] alias :: LINEAR
[root] ================================================================================
[root] [Target Lane Order Parameters]
[root] alias :: LINEAR
[root] ================================================================================
[root] [Arbiter of Choice]
[root] class_name :: example_one_by_one
[root] ================================================================================
[root] =============================== Experiment Start ===============================
[root] ================================================================================
[wdmsim.models.tuner] sweep range: [[1256.96, 1261.16], [1265.87, 1270.07], [1274.77, 1278.98], [1283.68, 1287.88], [1292.58, 1296.79], [1301.49, 1305.69], [1310.4, 1314.6], [1319.3, 1323.51], [1328.21, 1332.41]]
[wdmsim.models.tuner] incoming wavelengths [1298.96, 1301.17, 1303.36, 1305.58]
[wdmsim.models.tuner] sweep range: [[1259.33, 1264.13], [1268.28, 1273.08], [1277.24, 1282.03], [1286.19, 1290.99], [1295.14, 1299.94], [1304.1, 1308.89], [1313.05, 1317.85], [1322.0, 1326.8], [1330.96, 1335.75]]
[wdmsim.models.tuner] incoming wavelengths [1298.96, 1301.17, 1303.36, 1305.58]
[wdmsim.models.tuner] sweep range: [[1260.41, 1264.59], [1269.28, 1273.46], [1278.15, 1282.33], [1287.02, 1291.21], [1295.89, 1300.08], [1304.76, 1308.95], [1313.63, 1317.82], [1322.51, 1326.69], [1331.38, 1335.56]]
[wdmsim.models.tuner] incoming wavelengths [1298.96, 1301.17, 1303.36, 1305.58]
[wdmsim.models.tuner] sweep range: [[1261.04, 1265.25], [1269.94, 1274.15], [1278.84, 1283.05], [1287.74, 1291.95], [1296.64, 1300.84], [1305.54, 1309.74], [1314.43, 1318.64], [1323.33, 1327.54], [1332.23, 1336.44]]
[wdmsim.models.tuner] incoming wavelengths [1298.96, 1301.17, 1303.36, 1305.58]
[wdmsim.models.system_under_test] Target Ring->Laser ordering
R0 -> L0, R1 -> L1, R2 -> L2, R3 -> L3
[wdmsim.models.system_under_test] Target Laser->Ring ordering
L0 -> R0, L1 -> R1, L2 -> R2, L3 -> R3
[wdmsim.models.system_under_test] Search Table
+----+---------+--------+--------+---------+--------+--------+---------+--------+--------+---------+--------+--------+
| | R0/W | R0/C | R0/L | R1/W | R1/C | R1/L | R2/W | R2/C | R2/L | R3/W | R3/C | R3/L |
+====+=========+========+========+=========+========+========+=========+========+========+=========+========+========+
| 0 | 1303.36 | 113 | - | 1305.58 | 78 | - | 1305.58 | 49 | - | 1305.58 | 2 | - |
+----+---------+--------+--------+---------+--------+--------+---------+--------+--------+---------+--------+--------+
| 1 | 1305.58 | 248 | - | 1298.96 | 203 | - | 1298.96 | 187 | - | 1298.96 | 141 | - |
+----+---------+--------+--------+---------+--------+--------+---------+--------+--------+---------+--------+--------+
[wdmsim.models.tuner] sweep range: [[1256.96, 1261.16], [1265.87, 1270.07], [1274.77, 1278.98], [1283.68, 1287.88], [1292.58, 1296.79], [1301.49, 1305.69], [1310.4, 1314.6], [1319.3, 1323.51], [1328.21, 1332.41]]
[wdmsim.models.tuner] incoming wavelengths [1298.96, 1301.17, 1303.36, 1305.58]
[wdmsim.models.tuner] sweep range: [[1259.33, 1264.13], [1268.28, 1273.08], [1277.24, 1282.03], [1286.19, 1290.99], [1295.14, 1299.94], [1304.1, 1308.89], [1313.05, 1317.85], [1322.0, 1326.8], [1330.96, 1335.75]]
[wdmsim.models.tuner] incoming wavelengths [1298.96, 1301.17, 1305.58]
[wdmsim.models.tuner] sweep range: [[1260.41, 1264.59], [1269.28, 1273.46], [1278.15, 1282.33], [1287.02, 1291.21], [1295.89, 1300.08], [1304.76, 1308.95], [1313.63, 1317.82], [1322.51, 1326.69], [1331.38, 1335.56]]
[wdmsim.models.tuner] incoming wavelengths [1298.96, 1301.17]
[wdmsim.models.tuner] sweep range: [[1261.04, 1265.25], [1269.94, 1274.15], [1278.84, 1283.05], [1287.74, 1291.95], [1296.64, 1300.84], [1305.54, 1309.74], [1314.43, 1318.64], [1323.33, 1327.54], [1332.23, 1336.44]]
[wdmsim.models.tuner] incoming wavelengths [1301.17]
[wdmsim.models.system_under_test] Target Ring->Laser ordering
R0 -> L0, R1 -> L1, R2 -> L2, R3 -> L3
[wdmsim.models.system_under_test] Target Laser->Ring ordering
L0 -> R0, L1 -> R1, L2 -> R2, L3 -> R3
[wdmsim.models.system_under_test] Lock Allocation Table
+----+---------+--------+--------+---------+--------+--------+---------+--------+--------+---------+--------+--------+
| | R0/W | R0/C | R0/L | R1/W | R1/C | R1/L | R2/W | R2/C | R2/L | R3/W | R3/C | R3/L |
+====+=========+========+========+=========+========+========+=========+========+========+=========+========+========+
| 0 | 1303.36 | 113 | L | 1305.58 | 78 | L | 1305.58 | 49 | - | 1305.58 | 2 | - |
+----+---------+--------+--------+---------+--------+--------+---------+--------+--------+---------+--------+--------+
| 1 | 1305.58 | 248 | - | 1298.96 | 203 | - | 1298.96 | 187 | L | 1298.96 | 141 | - |
+----+---------+--------+--------+---------+--------+--------+---------+--------+--------+---------+--------+--------+
[wdmsim.models.system_under_test] lock_wavelengths: [1303.36, 1305.58, 1298.96, None]
[wdmsim.models.system_under_test] Zero Lock Case: 1, return with status code 1
[wdmsim.models.system_under_test] Arbiter: SimpleArbiter
[wdmsim.models.system_under_test]
_ ___ ____ _ __ _____ _ ___ _
| | / _ \ / ___|| |/ / | ___| / \ |_ _|| |
| | | | | || | | ' / | |_ / _ \ | | | |
| |___ | |_| || |___ | . \ | _| / ___ \ | | | |___
|_____| \___/ \____||_|\_\ |_| /_/ \_\|___||_____|
[wdmsim.models.tuner] sweep range: [[1256.96, 1261.16], [1265.87, 1270.07], [1274.77, 1278.98], [1283.68, 1287.88], [1292.58, 1296.79], [1301.49, 1305.69], [1310.4, 1314.6], [1319.3, 1323.51], [1328.21, 1332.41]]
[wdmsim.models.tuner] incoming wavelengths [1297.71, 1300.0, 1302.11, 1304.36]
[wdmsim.models.tuner] sweep range: [[1259.33, 1264.13], [1268.28, 1273.08], [1277.24, 1282.03], [1286.19, 1290.99], [1295.14, 1299.94], [1304.1, 1308.89], [1313.05, 1317.85], [1322.0, 1326.8], [1330.96, 1335.75]]
[wdmsim.models.tuner] incoming wavelengths [1297.71, 1300.0, 1302.11, 1304.36]
[wdmsim.models.tuner] sweep range: [[1260.41, 1264.59], [1269.28, 1273.46], [1278.15, 1282.33], [1287.02, 1291.21], [1295.89, 1300.08], [1304.76, 1308.95], [1313.63, 1317.82], [1322.51, 1326.69], [1331.38, 1335.56]]
[wdmsim.models.tuner] incoming wavelengths [1297.71, 1300.0, 1302.11, 1304.36]
[wdmsim.models.tuner] sweep range: [[1261.04, 1265.25], [1269.94, 1274.15], [1278.84, 1283.05], [1287.74, 1291.95], [1296.64, 1300.84], [1305.54, 1309.74], [1314.43, 1318.64], [1323.33, 1327.54], [1332.23, 1336.44]]
[wdmsim.models.tuner] incoming wavelengths [1297.71, 1300.0, 1302.11, 1304.36]
[wdmsim.models.system_under_test] Target Ring->Laser ordering
R0 -> L0, R1 -> L1, R2 -> L2, R3 -> L3
[wdmsim.models.system_under_test] Target Laser->Ring ordering
L0 -> R0, L1 -> R1, L2 -> R2, L3 -> R3
[wdmsim.models.system_under_test] Search Table
+----+---------+--------+--------+---------+--------+--------+---------+--------+--------+---------+--------+--------+
| | R0/W | R0/C | R0/L | R1/W | R1/C | R1/L | R2/W | R2/C | R2/L | R3/W | R3/C | R3/L |
+====+=========+========+========+=========+========+========+=========+========+========+=========+========+========+
| 0 | 1302.11 | 37 | - | 1304.36 | 13 | - | 1297.71 | 111 | - | 1297.71 | 65 | - |
+----+---------+--------+--------+---------+--------+--------+---------+--------+--------+---------+--------+--------+
| 1 | 1304.36 | 174 | - | 1297.71 | 136 | - | 1300.00 | 251 | - | 1300.00 | 204 | - |
+----+---------+--------+--------+---------+--------+--------+---------+--------+--------+---------+--------+--------+
[wdmsim.models.tuner] sweep range: [[1256.96, 1261.16], [1265.87, 1270.07], [1274.77, 1278.98], [1283.68, 1287.88], [1292.58, 1296.79], [1301.49, 1305.69], [1310.4, 1314.6], [1319.3, 1323.51], [1328.21, 1332.41]]
[wdmsim.models.tuner] incoming wavelengths [1297.71, 1300.0, 1302.11, 1304.36]
[wdmsim.models.tuner] sweep range: [[1259.33, 1264.13], [1268.28, 1273.08], [1277.24, 1282.03], [1286.19, 1290.99], [1295.14, 1299.94], [1304.1, 1308.89], [1313.05, 1317.85], [1322.0, 1326.8], [1330.96, 1335.75]]
[wdmsim.models.tuner] incoming wavelengths [1297.71, 1300.0, 1304.36]
[wdmsim.models.tuner] sweep range: [[1260.41, 1264.59], [1269.28, 1273.46], [1278.15, 1282.33], [1287.02, 1291.21], [1295.89, 1300.08], [1304.76, 1308.95], [1313.63, 1317.82], [1322.51, 1326.69], [1331.38, 1335.56]]
[wdmsim.models.tuner] incoming wavelengths [1297.71, 1300.0]
[wdmsim.models.tuner] sweep range: [[1261.04, 1265.25], [1269.94, 1274.15], [1278.84, 1283.05], [1287.74, 1291.95], [1296.64, 1300.84], [1305.54, 1309.74], [1314.43, 1318.64], [1323.33, 1327.54], [1332.23, 1336.44]]
[wdmsim.models.tuner] incoming wavelengths [1300.0]
[wdmsim.models.system_under_test] Target Ring->Laser ordering
R0 -> L0, R1 -> L1, R2 -> L2, R3 -> L3
[wdmsim.models.system_under_test] Target Laser->Ring ordering
L0 -> R0, L1 -> R1, L2 -> R2, L3 -> R3
[wdmsim.models.system_under_test] Lock Allocation Table
+----+---------+--------+--------+---------+--------+--------+---------+--------+--------+---------+--------+--------+
| | R0/W | R0/C | R0/L | R1/W | R1/C | R1/L | R2/W | R2/C | R2/L | R3/W | R3/C | R3/L |
+====+=========+========+========+=========+========+========+=========+========+========+=========+========+========+
| 0 | 1302.11 | 37 | L | 1304.36 | 13 | L | 1297.71 | 111 | L | 1297.71 | 65 | - |
+----+---------+--------+--------+---------+--------+--------+---------+--------+--------+---------+--------+--------+
| 1 | 1304.36 | 174 | - | 1297.71 | 136 | - | 1300.00 | 251 | - | 1300.00 | 204 | L |
+----+---------+--------+--------+---------+--------+--------+---------+--------+--------+---------+--------+--------+
[wdmsim.models.system_under_test] lock_wavelengths: [1302.11, 1304.36, 1297.71, 1300.0]
[wdmsim.models.system_under_test] System is locked: 2, return with status code 0
[wdmsim.models.system_under_test] Arbiter: SimpleArbiter
[wdmsim.models.system_under_test]
_ ___ ____ _ __ ____ _ _ ____ ____ _____ ____ ____
| | / _ \ / ___|| |/ / / ___| | | | | / ___| / ___|| ____|/ ___| / ___|
| | | | | || | | ' / \___ \ | | | || | | | | _| \___ \ \___ \
| |___ | |_| || |___ | . \ ___) || |_| || |___ | |___ | |___ ___) | ___) |
|_____| \___/ \____||_|\_\ |____/ \___/ \____| \____||_____||____/ |____/
[wdmsim.models.tuner] sweep range: [[1255.36, 1259.53], [1264.31, 1268.47], [1273.25, 1277.41], [1282.19, 1286.35], [1291.13, 1295.3], [1300.07, 1304.24], [1309.02, 1313.18], [1317.96, 1322.12], [1326.9, 1331.06]]
[wdmsim.models.tuner] incoming wavelengths [1296.72, 1299.07, 1301.24, 1303.54]
[wdmsim.models.tuner] sweep range: [[1256.06, 1260.89], [1265.09, 1269.91], [1274.11, 1278.93], [1283.13, 1287.95], [1292.15, 1296.98], [1301.17, 1306.0], [1310.2, 1315.02], [1319.22, 1324.04], [1328.24, 1333.06]]
[wdmsim.models.tuner] incoming wavelengths [1296.72, 1299.07, 1301.24, 1303.54]
[wdmsim.models.tuner] sweep range: [[1259.52, 1264.14], [1268.4, 1273.01], [1277.27, 1281.89], [1286.14, 1290.76], [1295.01, 1299.63], [1303.88, 1308.5], [1312.75, 1317.37], [1321.63, 1326.24], [1330.5, 1335.12]]
[wdmsim.models.tuner] incoming wavelengths [1296.72, 1299.07, 1301.24, 1303.54]
[wdmsim.models.tuner] sweep range: [[1260.43, 1265.15], [1269.38, 1274.1], [1278.32, 1283.05], [1287.27, 1291.99], [1296.22, 1300.94], [1305.16, 1309.89], [1314.11, 1318.83], [1323.06, 1327.78], [1332.0, 1336.73]]
[wdmsim.models.tuner] incoming wavelengths [1296.72, 1299.07, 1301.24, 1303.54]
[wdmsim.models.system_under_test] Target Ring->Laser ordering
R0 -> L0, R1 -> L1, R2 -> L2, R3 -> L3
[wdmsim.models.system_under_test] Target Laser->Ring ordering
L0 -> R0, L1 -> R1, L2 -> R2, L3 -> R3
[wdmsim.models.system_under_test] Search Table
+----+---------+--------+--------+---------+--------+--------+---------+--------+--------+---------+--------+--------+
| | R0/W | R0/C | R0/L | R1/W | R1/C | R1/L | R2/W | R2/C | R2/L | R3/W | R3/C | R3/L |
+====+=========+========+========+=========+========+========+=========+========+========+=========+========+========+
| 0 | 1301.24 | 71 | - | 1301.24 | 3 | - | 1296.72 | 94 | - | 1296.72 | 27 | - |
+----+---------+--------+--------+---------+--------+--------+---------+--------+--------+---------+--------+--------+
| 1 | 1303.54 | 212 | - | 1303.54 | 125 | - | 1299.07 | 225 | - | 1299.07 | 154 | - |
+----+---------+--------+--------+---------+--------+--------+---------+--------+--------+---------+--------+--------+
| 2 | - | - | - | 1296.72 | 242 | - | - | - | - | - | - | - |
+----+---------+--------+--------+---------+--------+--------+---------+--------+--------+---------+--------+--------+
[wdmsim.models.tuner] sweep range: [[1255.36, 1259.53], [1264.31, 1268.47], [1273.25, 1277.41], [1282.19, 1286.35], [1291.13, 1295.3], [1300.07, 1304.24], [1309.02, 1313.18], [1317.96, 1322.12], [1326.9, 1331.06]]
[wdmsim.models.tuner] incoming wavelengths [1296.72, 1299.07, 1301.24, 1303.54]
[wdmsim.models.tuner] sweep range: [[1256.06, 1260.89], [1265.09, 1269.91], [1274.11, 1278.93], [1283.13, 1287.95], [1292.15, 1296.98], [1301.17, 1306.0], [1310.2, 1315.02], [1319.22, 1324.04], [1328.24, 1333.06]]
[wdmsim.models.tuner] incoming wavelengths [1296.72, 1299.07, 1303.54]
[wdmsim.models.tuner] sweep range: [[1259.52, 1264.14], [1268.4, 1273.01], [1277.27, 1281.89], [1286.14, 1290.76], [1295.01, 1299.63], [1303.88, 1308.5], [1312.75, 1317.37], [1321.63, 1326.24], [1330.5, 1335.12]]
[wdmsim.models.tuner] incoming wavelengths [1296.72, 1299.07]
[wdmsim.models.tuner] sweep range: [[1260.43, 1265.15], [1269.38, 1274.1], [1278.32, 1283.05], [1287.27, 1291.99], [1296.22, 1300.94], [1305.16, 1309.89], [1314.11, 1318.83], [1323.06, 1327.78], [1332.0, 1336.73]]
[wdmsim.models.tuner] incoming wavelengths [1299.07]
[wdmsim.models.system_under_test] Target Ring->Laser ordering
R0 -> L0, R1 -> L1, R2 -> L2, R3 -> L3
[wdmsim.models.system_under_test] Target Laser->Ring ordering
L0 -> R0, L1 -> R1, L2 -> R2, L3 -> R3
[wdmsim.models.system_under_test] Lock Allocation Table
+----+---------+--------+--------+---------+--------+--------+---------+--------+--------+---------+--------+--------+
| | R0/W | R0/C | R0/L | R1/W | R1/C | R1/L | R2/W | R2/C | R2/L | R3/W | R3/C | R3/L |
+====+=========+========+========+=========+========+========+=========+========+========+=========+========+========+
| 0 | 1301.24 | 71 | L | 1301.24 | 3 | - | 1296.72 | 94 | L | 1296.72 | 27 | - |
+----+---------+--------+--------+---------+--------+--------+---------+--------+--------+---------+--------+--------+
| 1 | 1303.54 | 212 | - | 1303.54 | 125 | L | 1299.07 | 225 | - | 1299.07 | 154 | L |
+----+---------+--------+--------+---------+--------+--------+---------+--------+--------+---------+--------+--------+
| 2 | - | - | - | 1296.72 | 242 | - | - | - | - | - | - | - |
+----+---------+--------+--------+---------+--------+--------+---------+--------+--------+---------+--------+--------+
[wdmsim.models.system_under_test] lock_wavelengths: [1301.24, 1303.54, 1296.72, 1299.07]
[wdmsim.models.system_under_test] System is locked: 3, return with status code 0
[wdmsim.models.system_under_test] Arbiter: SimpleArbiter
[wdmsim.models.system_under_test]
_ ___ ____ _ __ ____ _ _ ____ ____ _____ ____ ____
| | / _ \ / ___|| |/ / / ___| | | | | / ___| / ___|| ____|/ ___| / ___|
| | | | | || | | ' / \___ \ | | | || | | | | _| \___ \ \___ \
| |___ | |_| || |___ | . \ ___) || |_| || |___ | |___ | |___ ___) | ___) |
|_____| \___/ \____||_|\_\ |____/ \___/ \____| \____||_____||____/ |____/
[wdmsim.models.tuner] sweep range: [[1255.36, 1259.53], [1264.31, 1268.47], [1273.25, 1277.41], [1282.19, 1286.35], [1291.13, 1295.3], [1300.07, 1304.24], [1309.02, 1313.18], [1317.96, 1322.12], [1326.9, 1331.06]]
[wdmsim.models.tuner] incoming wavelengths [1300.39, 1302.57, 1304.94, 1307.19]
[wdmsim.models.tuner] sweep range: [[1256.06, 1260.89], [1265.09, 1269.91], [1274.11, 1278.93], [1283.13, 1287.95], [1292.15, 1296.98], [1301.17, 1306.0], [1310.2, 1315.02], [1319.22, 1324.04], [1328.24, 1333.06]]
[wdmsim.models.tuner] incoming wavelengths [1300.39, 1302.57, 1304.94, 1307.19]
[wdmsim.models.tuner] sweep range: [[1259.52, 1264.14], [1268.4, 1273.01], [1277.27, 1281.89], [1286.14, 1290.76], [1295.01, 1299.63], [1303.88, 1308.5], [1312.75, 1317.37], [1321.63, 1326.24], [1330.5, 1335.12]]
[wdmsim.models.tuner] incoming wavelengths [1300.39, 1302.57, 1304.94, 1307.19]
[wdmsim.models.tuner] sweep range: [[1260.43, 1265.15], [1269.38, 1274.1], [1278.32, 1283.05], [1287.27, 1291.99], [1296.22, 1300.94], [1305.16, 1309.89], [1314.11, 1318.83], [1323.06, 1327.78], [1332.0, 1336.73]]
[wdmsim.models.tuner] incoming wavelengths [1300.39, 1302.57, 1304.94, 1307.19]
[wdmsim.models.system_under_test] Target Ring->Laser ordering
R0 -> L0, R1 -> L1, R2 -> L2, R3 -> L3
[wdmsim.models.system_under_test] Target Laser->Ring ordering
L0 -> R0, L1 -> R1, L2 -> R2, L3 -> R3
[wdmsim.models.system_under_test] Search Table
+----+---------+--------+--------+---------+--------+--------+---------+--------+--------+---------+--------+--------+
| | R0/W | R0/C | R0/L | R1/W | R1/C | R1/L | R2/W | R2/C | R2/L | R3/W | R3/C | R3/L |
+====+=========+========+========+=========+========+========+=========+========+========+=========+========+========+
| 0 | 1300.39 | 19 | - | 1302.57 | 74 | - | 1304.94 | 58 | - | 1307.19 | 109 | - |
+----+---------+--------+--------+---------+--------+--------+---------+--------+--------+---------+--------+--------+
| 1 | 1302.57 | 153 | - | 1304.94 | 199 | - | 1307.19 | 183 | - | 1300.39 | 226 | - |
+----+---------+--------+--------+---------+--------+--------+---------+--------+--------+---------+--------+--------+
[wdmsim.models.tuner] sweep range: [[1255.36, 1259.53], [1264.31, 1268.47], [1273.25, 1277.41], [1282.19, 1286.35], [1291.13, 1295.3], [1300.07, 1304.24], [1309.02, 1313.18], [1317.96, 1322.12], [1326.9, 1331.06]]
[wdmsim.models.tuner] incoming wavelengths [1300.39, 1302.57, 1304.94, 1307.19]
[wdmsim.models.tuner] sweep range: [[1256.06, 1260.89], [1265.09, 1269.91], [1274.11, 1278.93], [1283.13, 1287.95], [1292.15, 1296.98], [1301.17, 1306.0], [1310.2, 1315.02], [1319.22, 1324.04], [1328.24, 1333.06]]
[wdmsim.models.tuner] incoming wavelengths [1302.57, 1304.94, 1307.19]
[wdmsim.models.tuner] sweep range: [[1259.52, 1264.14], [1268.4, 1273.01], [1277.27, 1281.89], [1286.14, 1290.76], [1295.01, 1299.63], [1303.88, 1308.5], [1312.75, 1317.37], [1321.63, 1326.24], [1330.5, 1335.12]]
[wdmsim.models.tuner] incoming wavelengths [1304.94, 1307.19]
[wdmsim.models.tuner] sweep range: [[1260.43, 1265.15], [1269.38, 1274.1], [1278.32, 1283.05], [1287.27, 1291.99], [1296.22, 1300.94], [1305.16, 1309.89], [1314.11, 1318.83], [1323.06, 1327.78], [1332.0, 1336.73]]
[wdmsim.models.tuner] incoming wavelengths [1307.19]
[wdmsim.models.system_under_test] Target Ring->Laser ordering
R0 -> L0, R1 -> L1, R2 -> L2, R3 -> L3
[wdmsim.models.system_under_test] Target Laser->Ring ordering
L0 -> R0, L1 -> R1, L2 -> R2, L3 -> R3
[wdmsim.models.system_under_test] Lock Allocation Table
+----+---------+--------+--------+---------+--------+--------+---------+--------+--------+---------+--------+--------+
| | R0/W | R0/C | R0/L | R1/W | R1/C | R1/L | R2/W | R2/C | R2/L | R3/W | R3/C | R3/L |
+====+=========+========+========+=========+========+========+=========+========+========+=========+========+========+
| 0 | 1300.39 | 19 | L | 1302.57 | 74 | L | 1304.94 | 58 | L | 1307.19 | 109 | L |
+----+---------+--------+--------+---------+--------+--------+---------+--------+--------+---------+--------+--------+
| 1 | 1302.57 | 153 | - | 1304.94 | 199 | - | 1307.19 | 183 | - | 1300.39 | 226 | - |
+----+---------+--------+--------+---------+--------+--------+---------+--------+--------+---------+--------+--------+
[wdmsim.models.system_under_test] lock_wavelengths: [1300.39, 1302.57, 1304.94, 1307.19]
[wdmsim.models.system_under_test] System is locked: 4, return with status code 0
[wdmsim.models.system_under_test] Arbiter: SimpleArbiter
[wdmsim.models.system_under_test]
_ ___ ____ _ __ ____ _ _ ____ ____ _____ ____ ____
| | / _ \ / ___|| |/ / / ___| | | | | / ___| / ___|| ____|/ ___| / ___|
| | | | | || | | ' / \___ \ | | | || | | | | _| \___ \ \___ \
| |___ | |_| || |___ | . \ ___) || |_| || |___ | |___ | |___ ___) | ___) |
|_____| \___/ \____||_|\_\ |____/ \___/ \____| \____||_____||____/ |____/
[root] [Experiment]
[root] - 000004 iterations
[root] - 000003 successes
[root] - 000001 failures
[root] - 1.000000 zero lock failures
[root] - 0.000000 duplicate lock failures
[root] - 0.000000 wrong lane order failures
[root] - 0.250000 failure in time
[root] - 0.250000 failure in time by zero lock
[root] - 0.000000 failure in time by duplicate lock
[root] - 0.000000 failure in time by wrong lane order
[root] ================================================================================
[root] ================================ Experiment End ================================
[root] ================================================================================
[root] Log file: results/run/AR_example_one_by_one/LS_laser-4/run__RN_ring-4__ILO_linear__TLO_linear__num_swaps_laser_2_ring_2.log
You can locate the log file at the end of the output.
Sweep Mode
Sweep mode runs over multiple configurations and collect the results.
In the example below, we only apply the sweep config to the ring configuration, but you can apply it to the laser configuration as well.
$ cat example_sweep_config.yaml
# examples/example_sweep_config.yaml
ring-4-sweep:
run: SWEEP
type: RING
attribute:
fsr_mean: 8.96e-9
fsr_variance: 0.01
tuning_range_mean:
- 3.36e-9
- 4.48e-9
- 5.60e-9
tuning_range_variance: 0.10
inherit_laser_variance: false
resonance_variance:
run: 'LINEAR'
start: 2.0e-9
stop: 4.0e-9
num: 3
Now run the sweep mode. Note that –ring_config_file and –ring_config_section options are changed to example_sweep_config.yaml and ring-4-sweep respectively.
$ cat sweep_example.sh
#!/bin/bash
wdmsim sweep \
--arbiter example_one_by_one \
--num_laser_swaps 2 \
--num_ring_swaps 2 \
--laser_config_file example_run_config.yaml \
--ring_config_file example_sweep_config.yaml \
--init_lane_order_config_file example_run_config.yaml \
--tgt_lane_order_config_file example_run_config.yaml \
--laser_config_section laser-4 \
--ring_config_section ring-4-sweep \
--init_lane_order_config_section linear \
--tgt_lane_order_config_section linear \
--results_dir ./results
$ ./sweep_example.sh
You can check the generated CSV file at the location printed at the end of the output terminal.
In the CSV file, failure_in_time is the final output statistics specifying the ratio of the number of failures to the total number of iterations.
We will add more statistics in the future, as well as the full support for explicit stat mode.
Others
Lastly, we have many other features such as:
compare: run e2e comparison between two different arbitration modelssweep-compare: runcompareover the sweep configurations (for regression purpose)record: record the output of the simulation, to be run withreplayreplay: replay the recorded output of the simulation and check the match (for refactoring/debugging purpose)
stat mode is not fully available yet, but will be fixed in the near future.
